QUICK COUPLERS

GRAXX — the manufacturer of quick couplers for equipments for construction machinery (excavator buckets)

GRAXX offers two types of quick couplers: S-type (MH30, MH40, S30, S40, FL45 HYDREMA, S45, S50S60, S70, S80 etc.) and CW-type (CW10, CW20, CW30, CW40, CW45, CW45S, CW55, CW55S, CW70), matching all-purpose brackets available on the market.

 See the full range of quick couplers for excavator buckets in tables below

STANDARD S / Hydraulic

Quick coupler type

Shaft diameter

Width

Shaft spacing

MH30/195

30

195

200

MH40/250

40

250

250

S30/150

30

150

200

S30/180

 30

180

230

S40/200

40

200

300

S40/240

 40

240

300

S45

45

290

430

FL45 HYDREMA

45

300

330

S50

50

270

430

S60

60

340

480

S70

70

450

600

S80

80

590

670

S90

90

750

750

S100

100

750

900

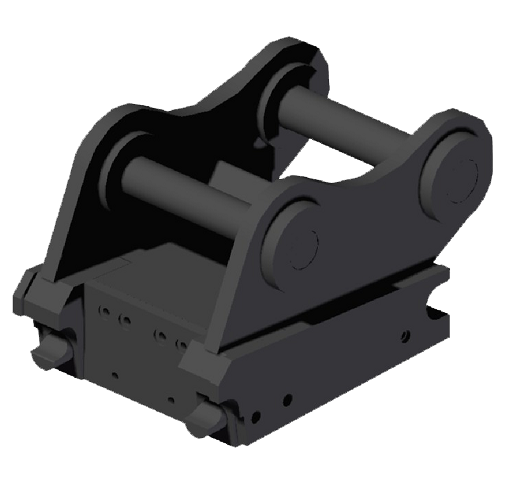

szyblkozlacze h

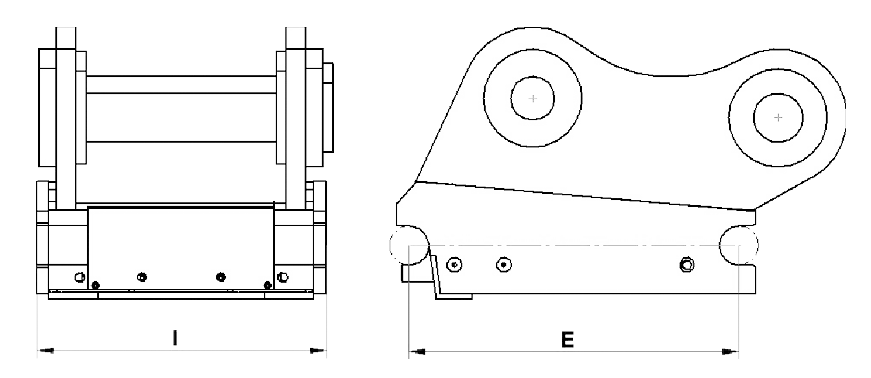

szyblkozlacze h rys





STANDARD S / Mechanical

Quick coupler type

Shaft diameter

Width

Shaft spacing

MH30/195

30

195

200

MH40/250

40

250

250

S30/150

30

150

200

S30/180

30

180

230

S40/200

40

200

300

S40/240

40

240

300

S45

45

290

430

FL45 HYDREMA

45

300

330

S50

50

270

430

szyblkozlacze m

szyblkozlacze m rys





STANDARD CW

Quick coupler type

haft diameter

Width

Shaft spacing

CW10

50

320

300

CW20

60

560

475

CW20S

60

430

475

CW30

60

560

475

CW30S

60

430

475

CW40

60

560

475

CW40S

60

430

475

CW45

90

700

570

CW45S

90

560

570

CW55

105

840

650

CW55S

105

570

650

CW70

130

850

875
